Ultra-light, race-strong, tuned for smoother shifts.

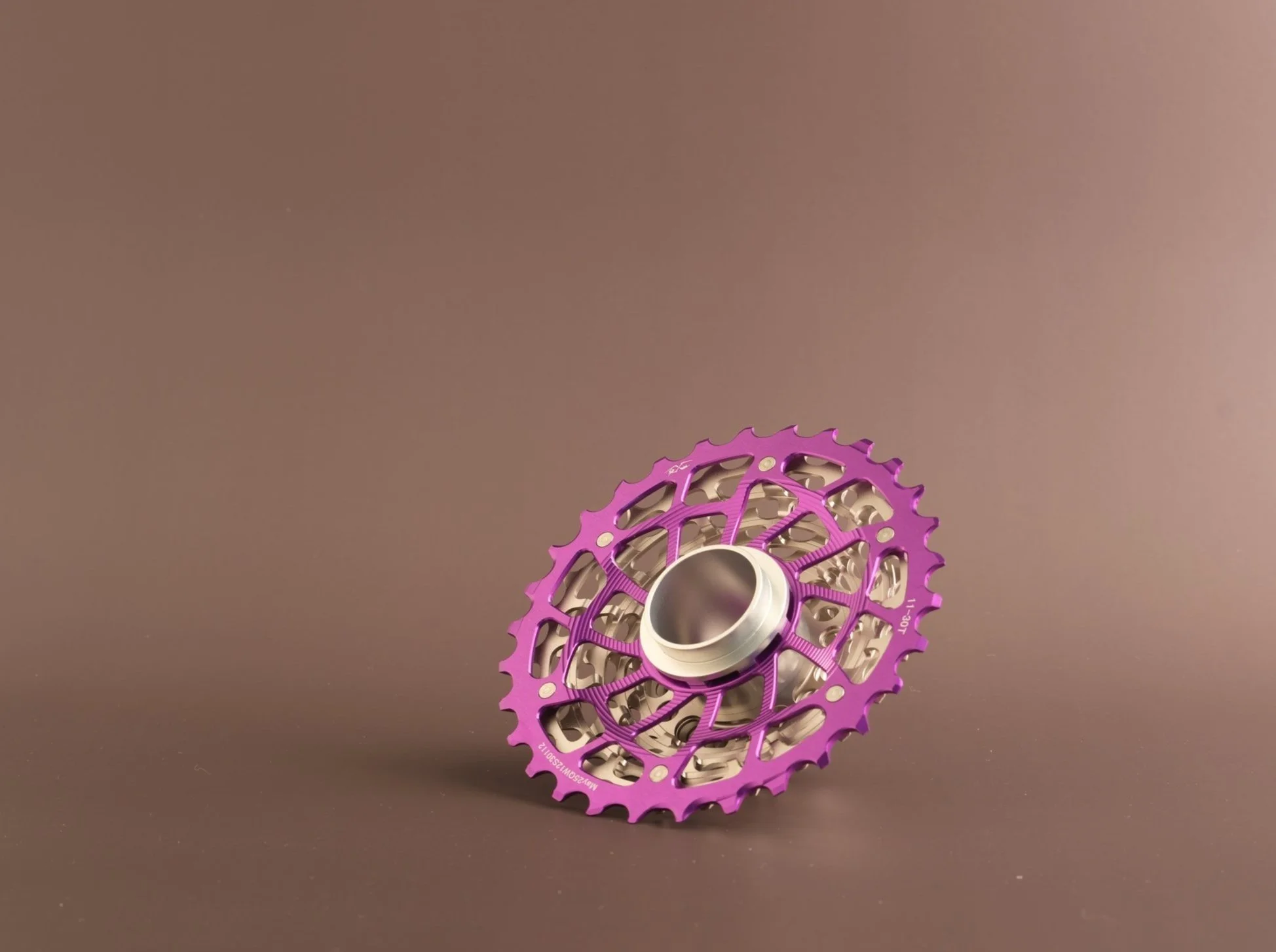

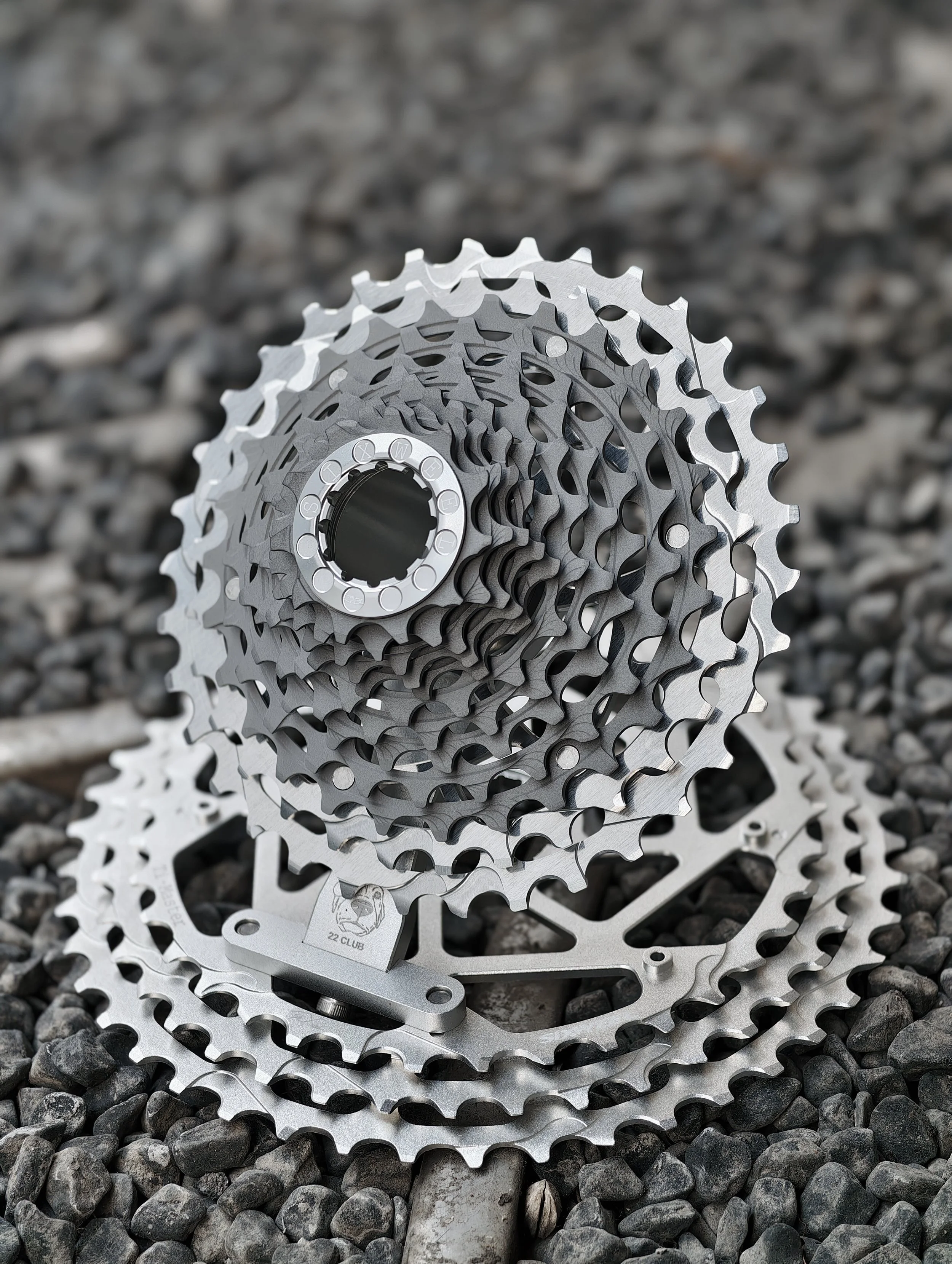

SixWeel 12-Speed EVO Cassette
-
Multiple Weight-Optimized Versions
Cuts grams without sacrificing stiffness.
Full-Ti version weights from 118g& Steel version weights from 178g. (Weight including locking ring)

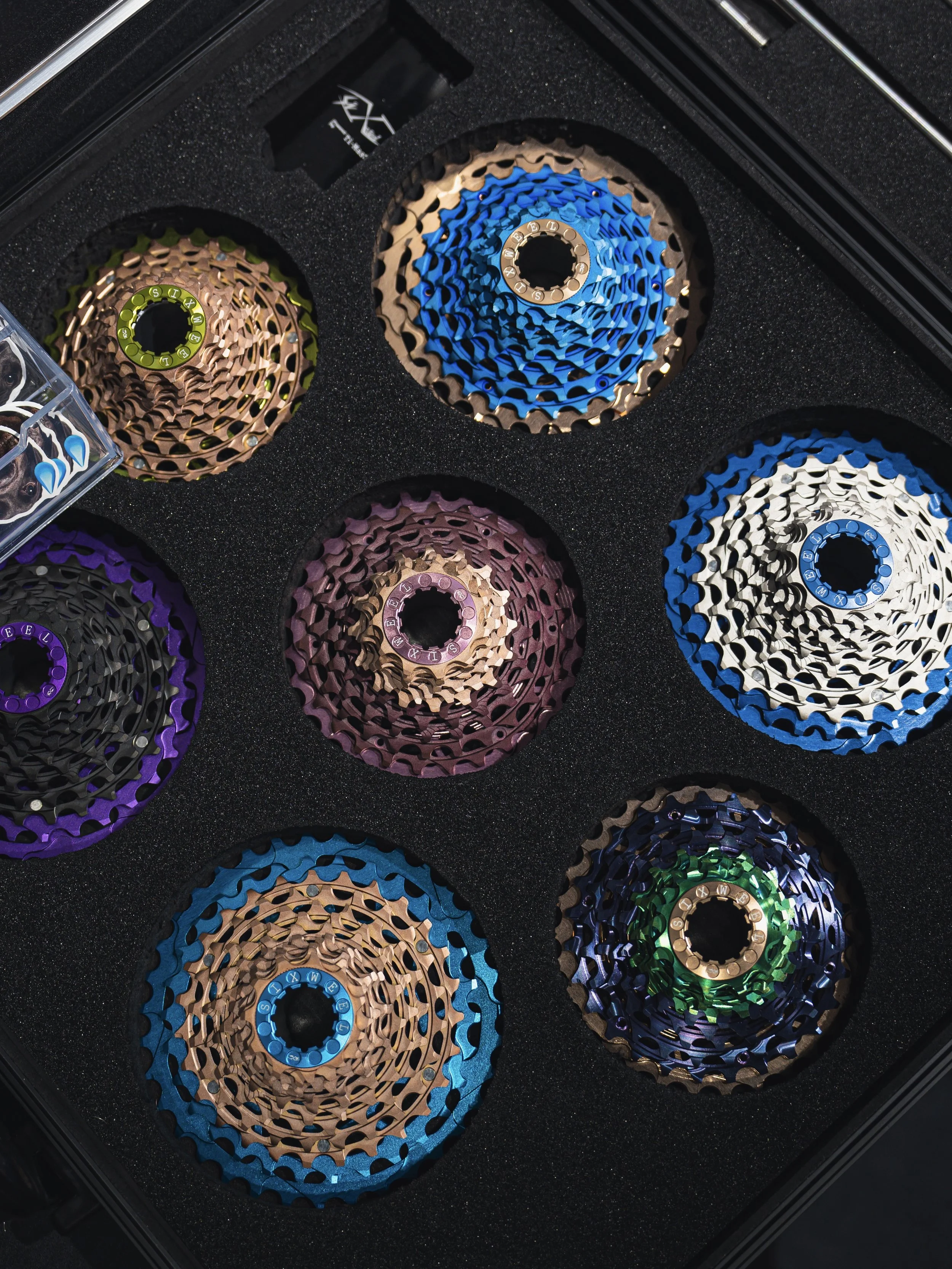

Available in Steel, Half-Titanium, and Full-Titanium configurations to match different riding priorities and performance goals.
-
Precision CNC Split Architecture
A patented split and monoblock CNC structure optimizes shifting angles, stiffness, and power transfer across the entire cassette.

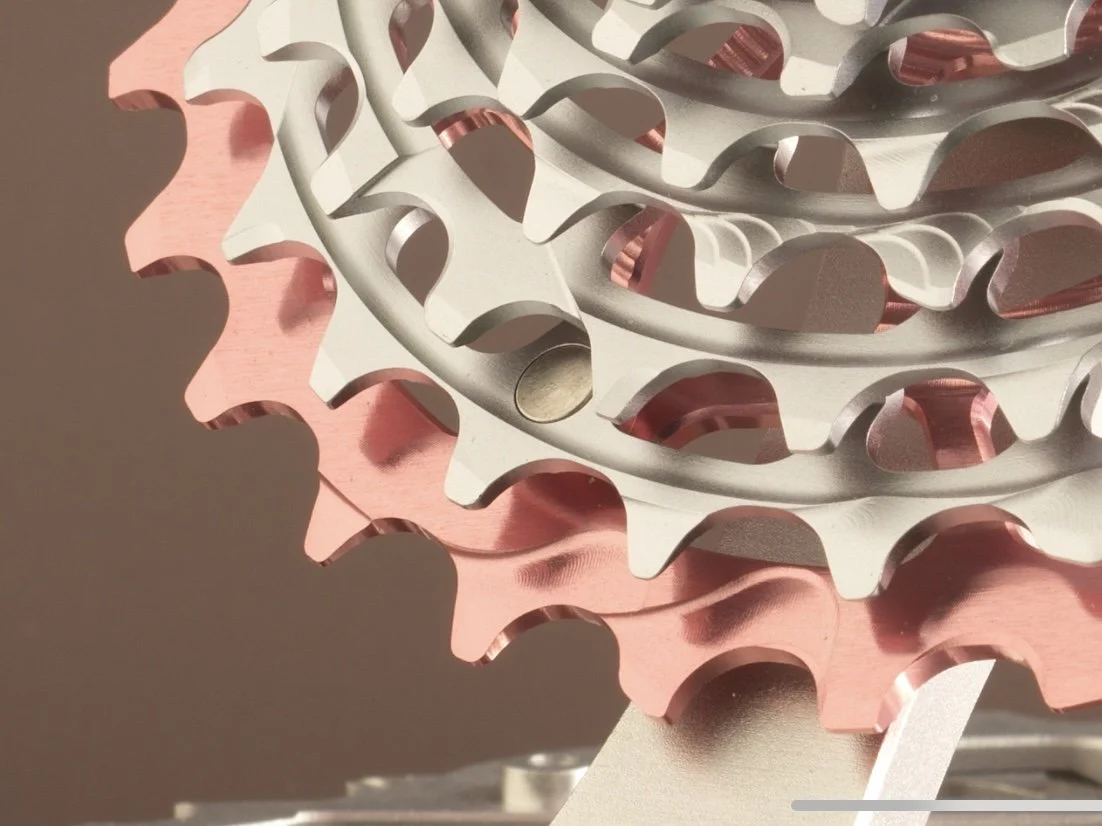

Precision-cut tooth ramps and chamfers guide the chain with predictable timing—delivering quicker, quieter shifts under load.
-
![]()
Advanced Materials & Heat Treatment
Strategic use of steel, titanium, and 7075-T6 aluminum combined with refined heat treatment ensures durability, efficiency, and corrosion resistance.
-
![]()
Optimized 12-Speed Compatibility
Compatible with HG freehubs and all 12s systems. (Shimano, SRAM and YBN chain)
A dedicated 11t gear provide for SRAM chains with request.
Split + Monoblock Structure. Precision in Every Gear.
Sixweel Evo cassettes use a patented hybrid structure:

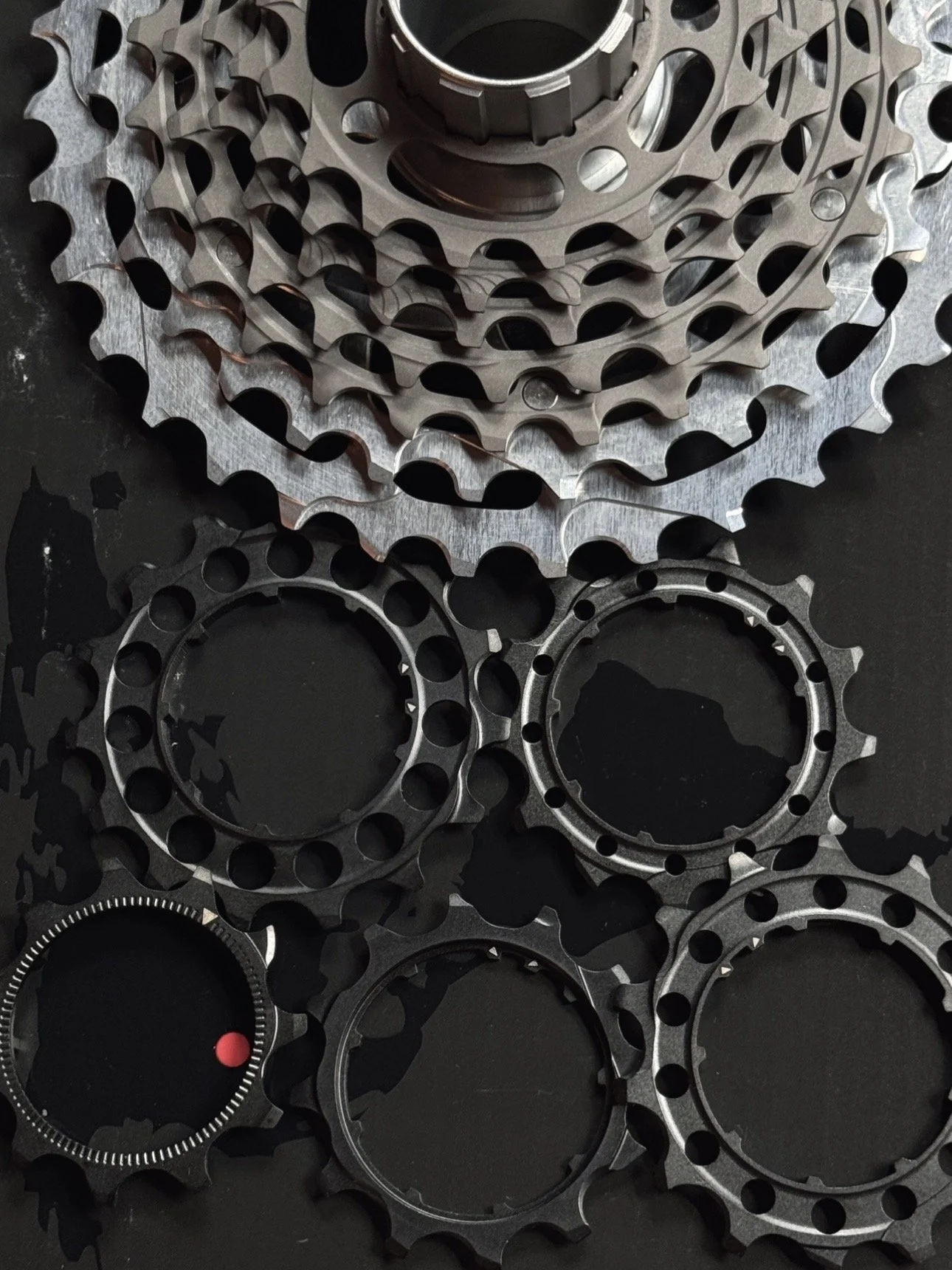

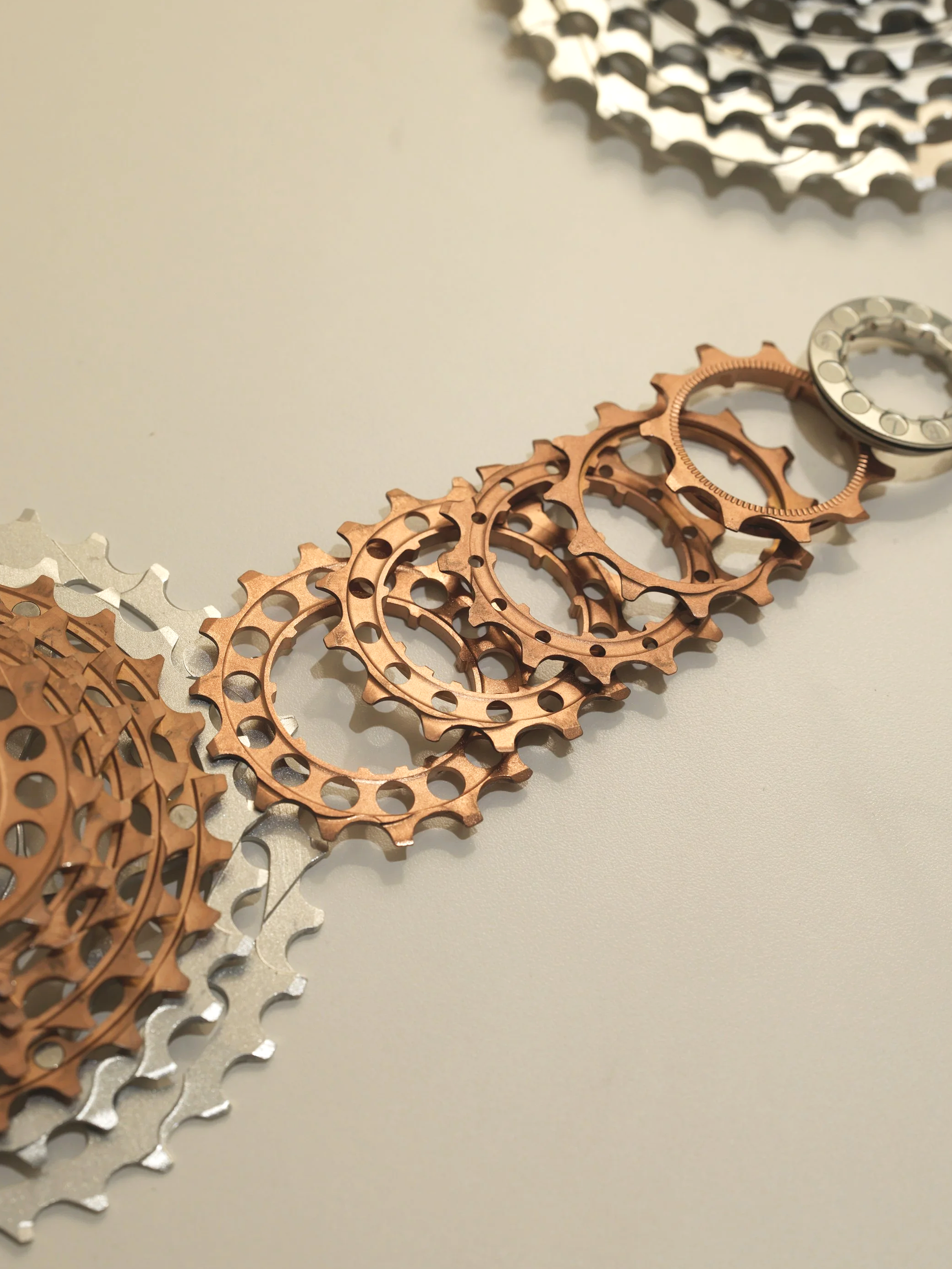

• 11–16T gears are split-piece CNC machined to optimize the shifting angle between each tooth.
• 17–27T are crafted as a single monoblock unit—steel or titanium—preserving stiffness while reducing weight.

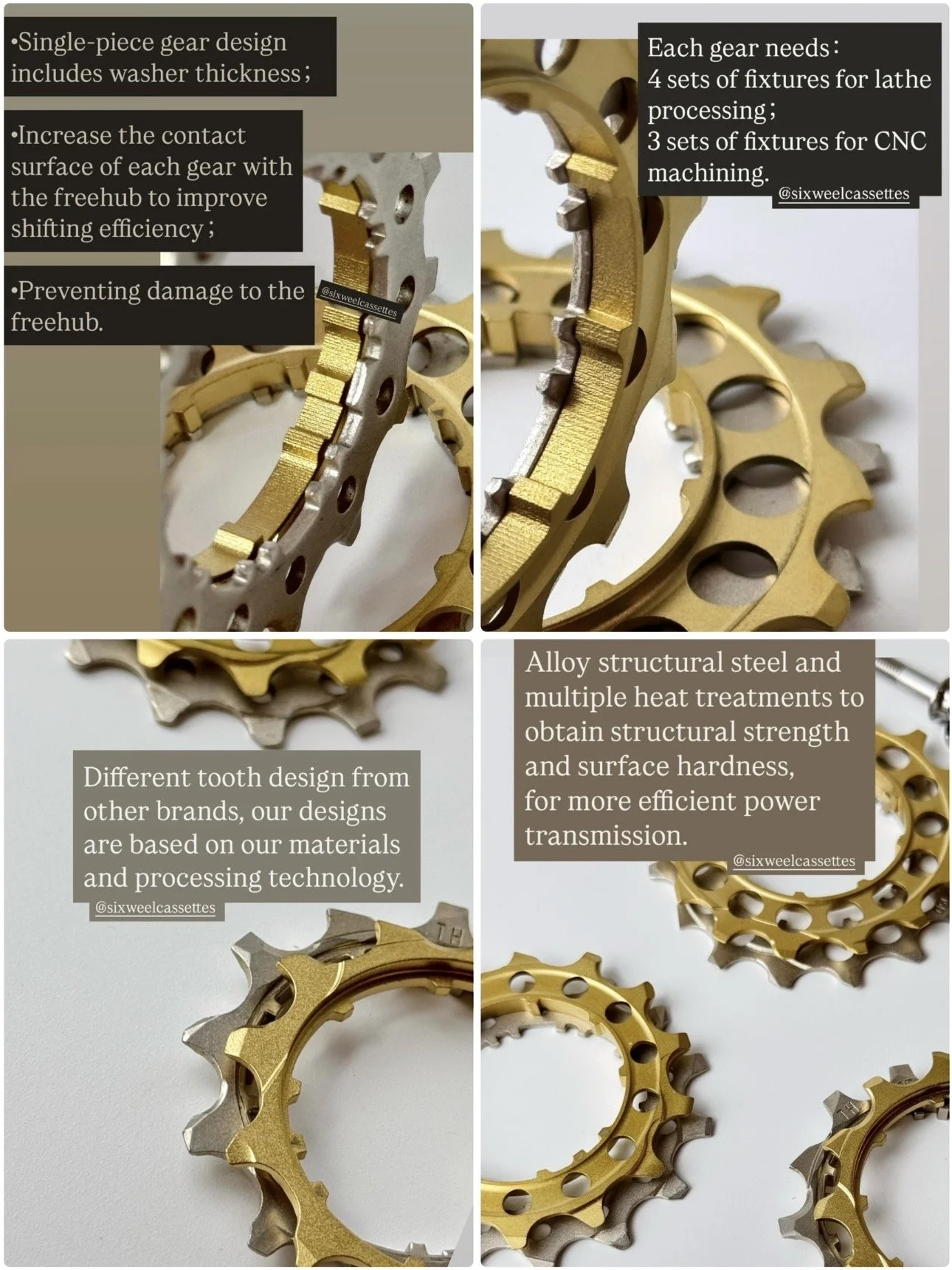

Integrated washer thickness ensures wider contact with the freehub body, improving power transfer and preventing spline damage.
Timed ramp windows: Chain climbs to the next cog with predictable, faster engagement.
Chamfered entries: Reduced chatter and easier pickup at high torque.
Tight early steps (11–17T): Hold rhythm in fast group rides.
Gradual mid jumps (17–27T): Balanced speed and hill transitions.
Climb finish: Large 30/34/35T options for low gearing without mid-cassette gaps.
Structural Strength Meets Elite-Level Efficiency.
Each part of the cassette is manufactured from a carefully calculated combination of structural steel, special titanium alloys, and 7075-T6 aluminum.
Refined heat treatment processes and PVD coating deliver higher surface hardness, corrosion resistance, and long-term durability—far beyond traditional stamped steel cassettes.
The result: shorter break-in mileage, higher torque tolerance, and consistent performance in professional racing conditions.
Engineered for Modern 12-Speed Road Systems.
Sixweel Evo cassettes are designed exclusively for the HG 11-speed freehub body and optimized for modern 12-speed road drivetrains.
They shift flawlessly with:
• Shimano 12s Road groups (Shimano or YBN chain)

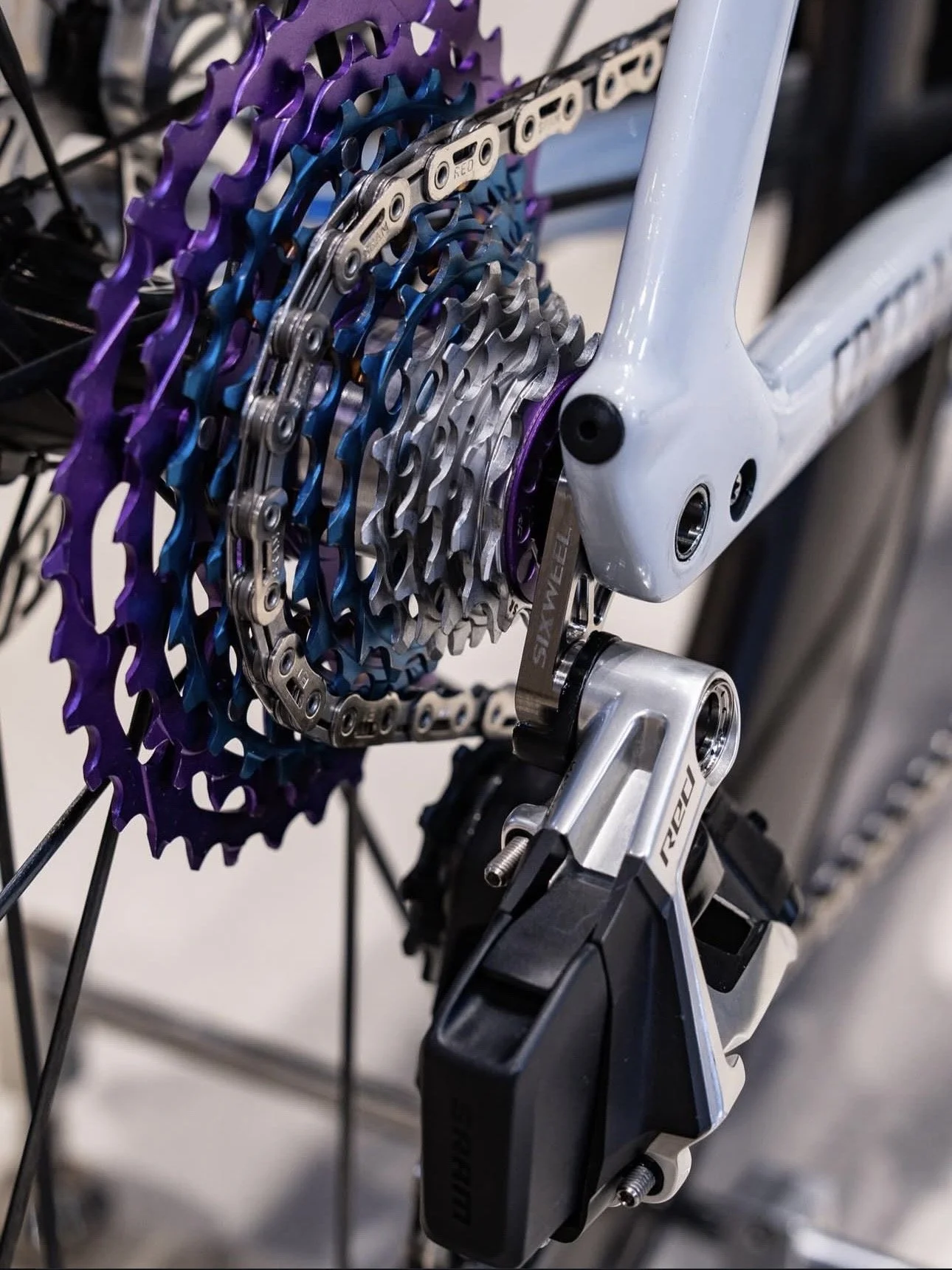

• SRAM 12s AXS Road (Flat-Top chain), with a dedicated SRAM-specific 11T included.
The optimized tooth ratios ensure predictable acceleration, stable high-torque shifting, and smooth transitions under load.
Available Ratios (12-speed)
- 11–30T: 11-12-13-14-15-16-17-19-21-24-27-30
- 11–34T: 11-12-13-14-15-17-19-21-24-27-30-34
- 11–35T: 11-12-13-14-15-17-19-21-24-27-30-35
Three Versions, Designed for Different Riders

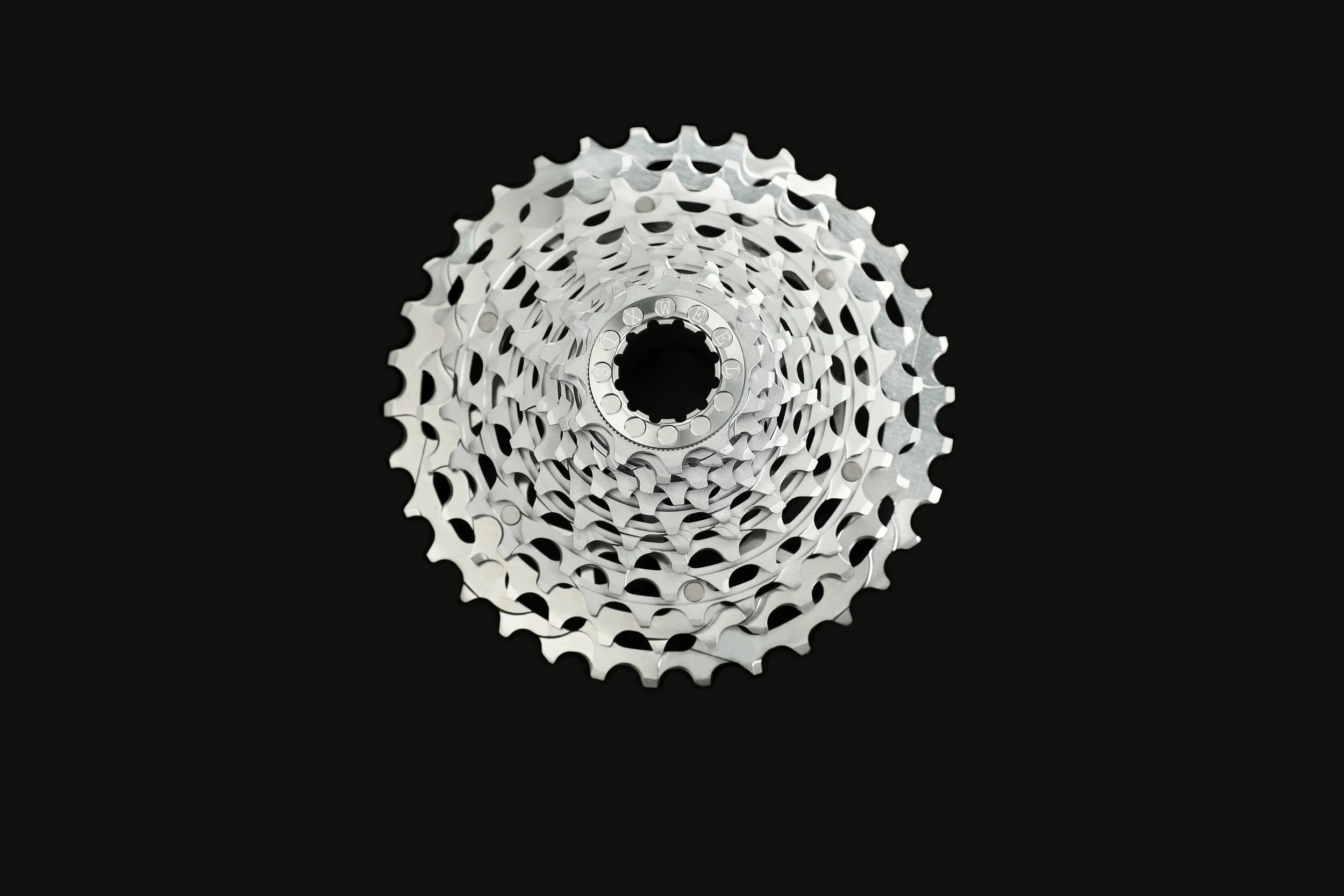

Steel Version — 178–188 g
Durable, cost-effective, ideal for training and all-weather use.
Half Titanium Version — 148–159 g
Titanium monoblock center offers improved stiffness and reduced weight without sacrificing strength.

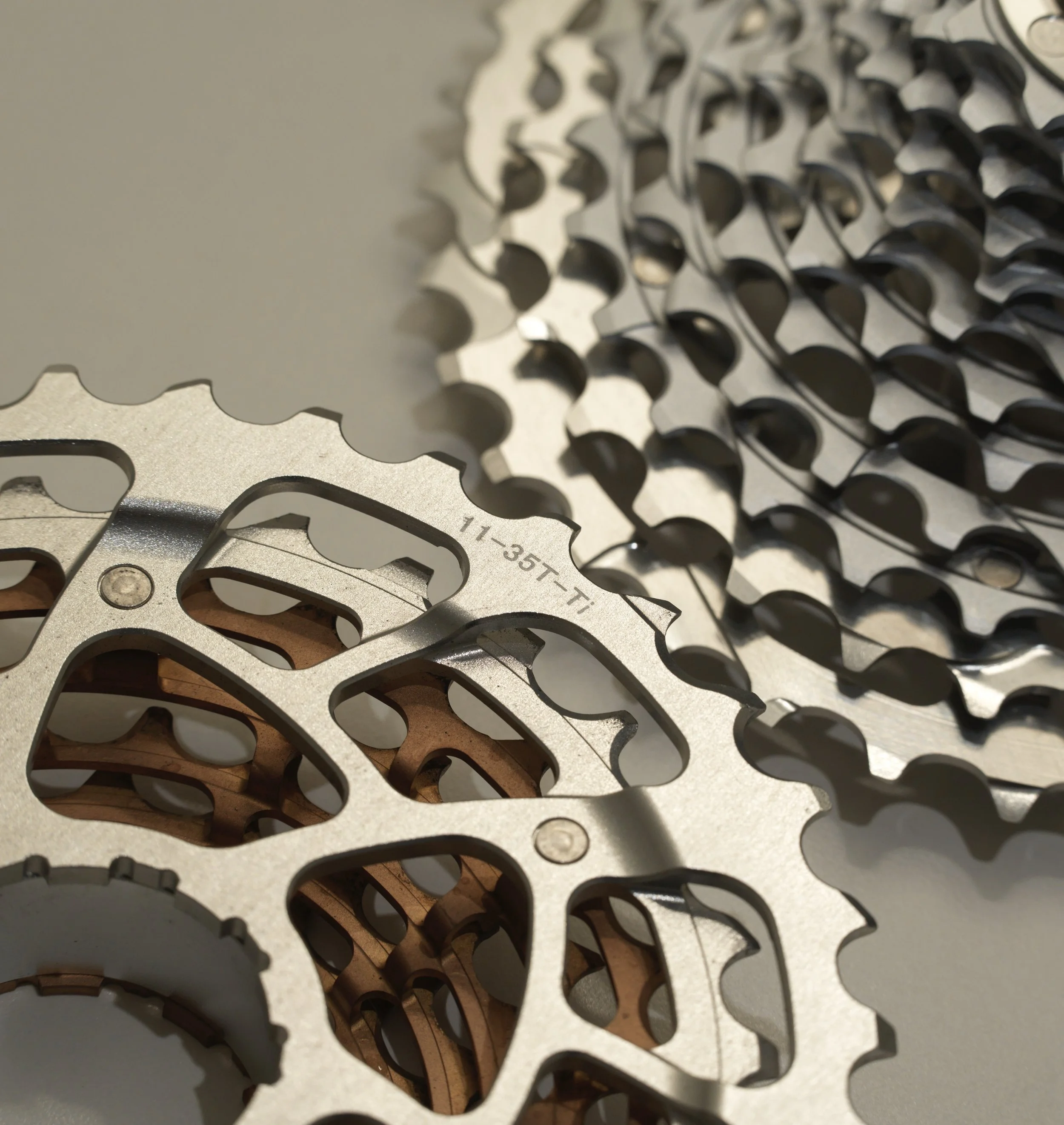

Full Titanium Version — 118–139 g
Our flagship construction: ultra-light, CNC-sculpted titanium for riders seeking the highest performance-to-weight ratio.
A Product Built to Last — Renewal Program Available
To support long-term use and reduce material waste, Sixweel offers a structured trade-in and upgrade program.
Customers can exchange an older Evo cassette for a new version at a reduced fee, or upgrade between Half-Titanium and Full-Titanium models.
This ensures your drivetrain always performs at its best—while contributing to a more sustainable production cycle.
Specifications Overview
12-Speed Evo Cassette — Technical Specifications
Designed for modern 12-speed road drivetrains, the Sixweel Evo cassette series combines precision CNC machining, optimized material distribution, and competition-proven geometry to deliver consistent shifting performance and long-term durability.
Available Versions & Weights
| Version | Tooth Range | Claimed Weight* |
|---|---|---|
| Steel Version | 11–30T | 178 g |
| 11–34T | 188 g | |
| Half-Titanium Version | 11–30T | 148 g |
| 11–34T | 155 g | |
| 11–35T | 159 g | |
| Full-Titanium Version | 11–30T | from 118 g |
| 11–34T | from 132 g | |
| 11–35T | from 139 g |
Gear Geometry & Construction
P1 — Small Gears (11–15T / 11–16T)
Split-piece CNC-machined gears designed to optimize shifting angles and ensure smooth, predictable transitions.
P2 — Mid Gears (17–27T)
Monoblock CNC construction using structural steel or special titanium alloy to maximize stiffness and torque resistance.

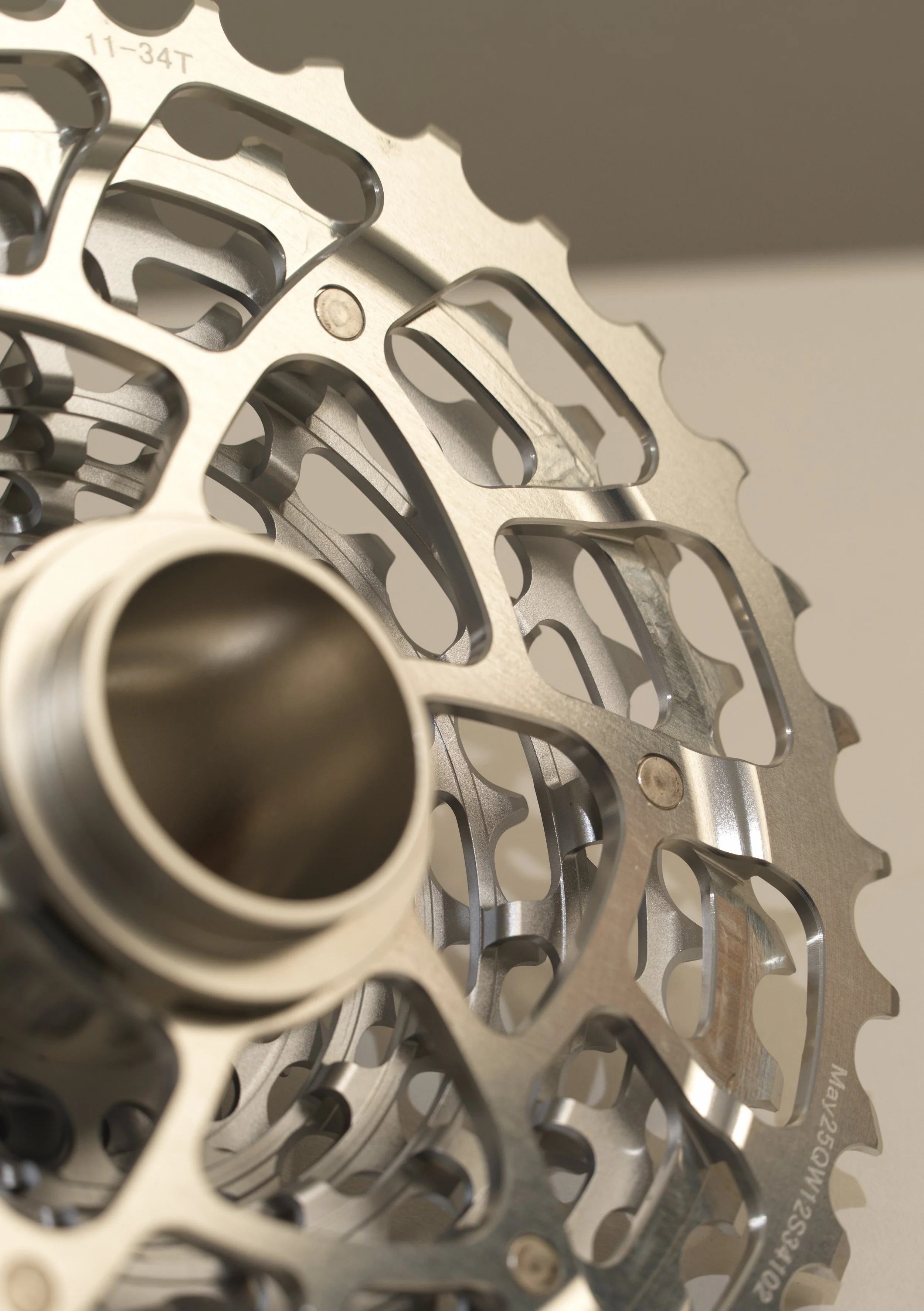

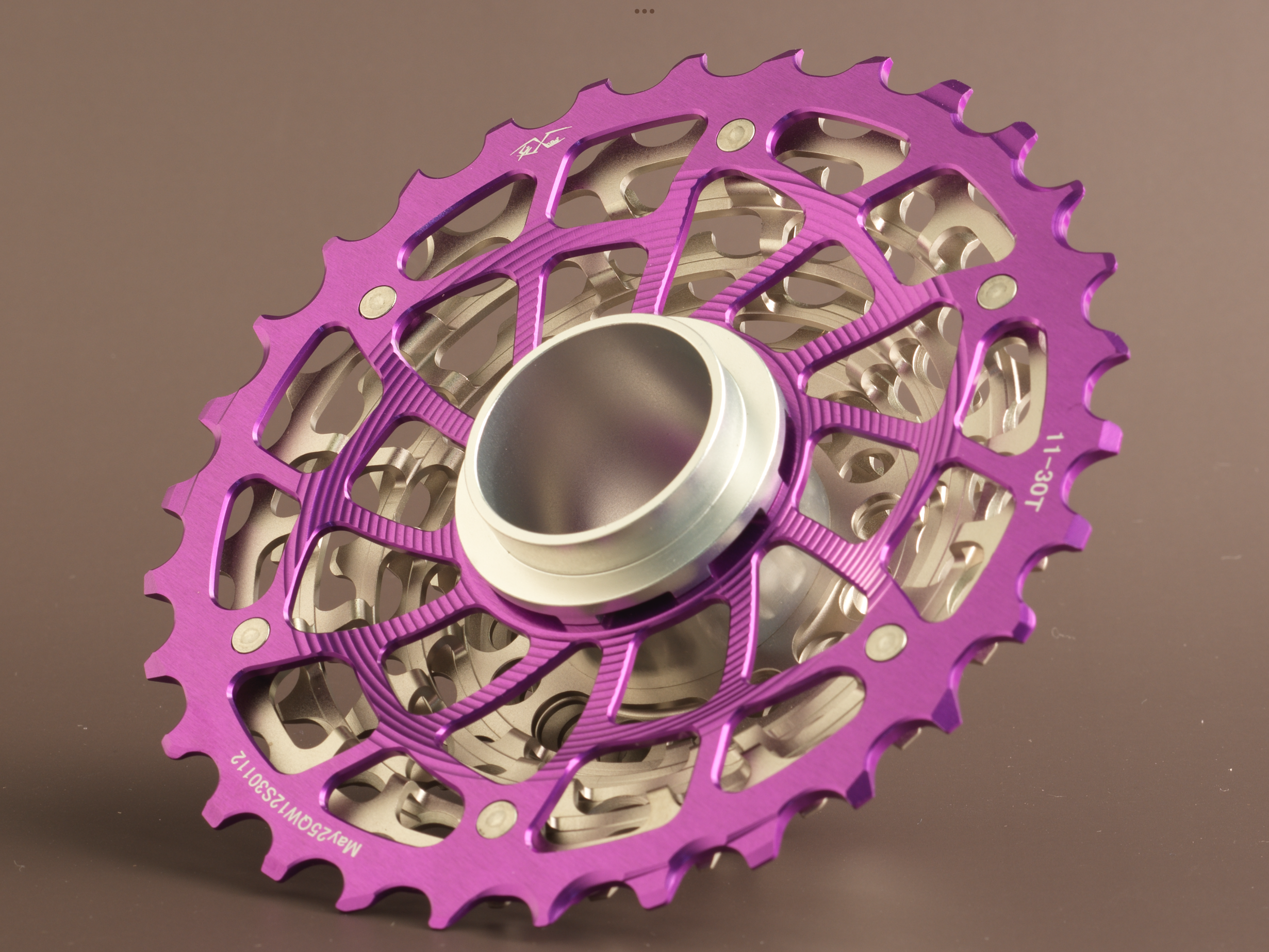

P3 — Large Gears (30T / 34T / 35T)
7075-T6 aerospace aluminum sprockets reduce rotational mass while maintaining structural integrity.
Materials & Surface Treatments
Structural alloy steel
Special high-strength titanium alloys
7075-T6 aerospace aluminum

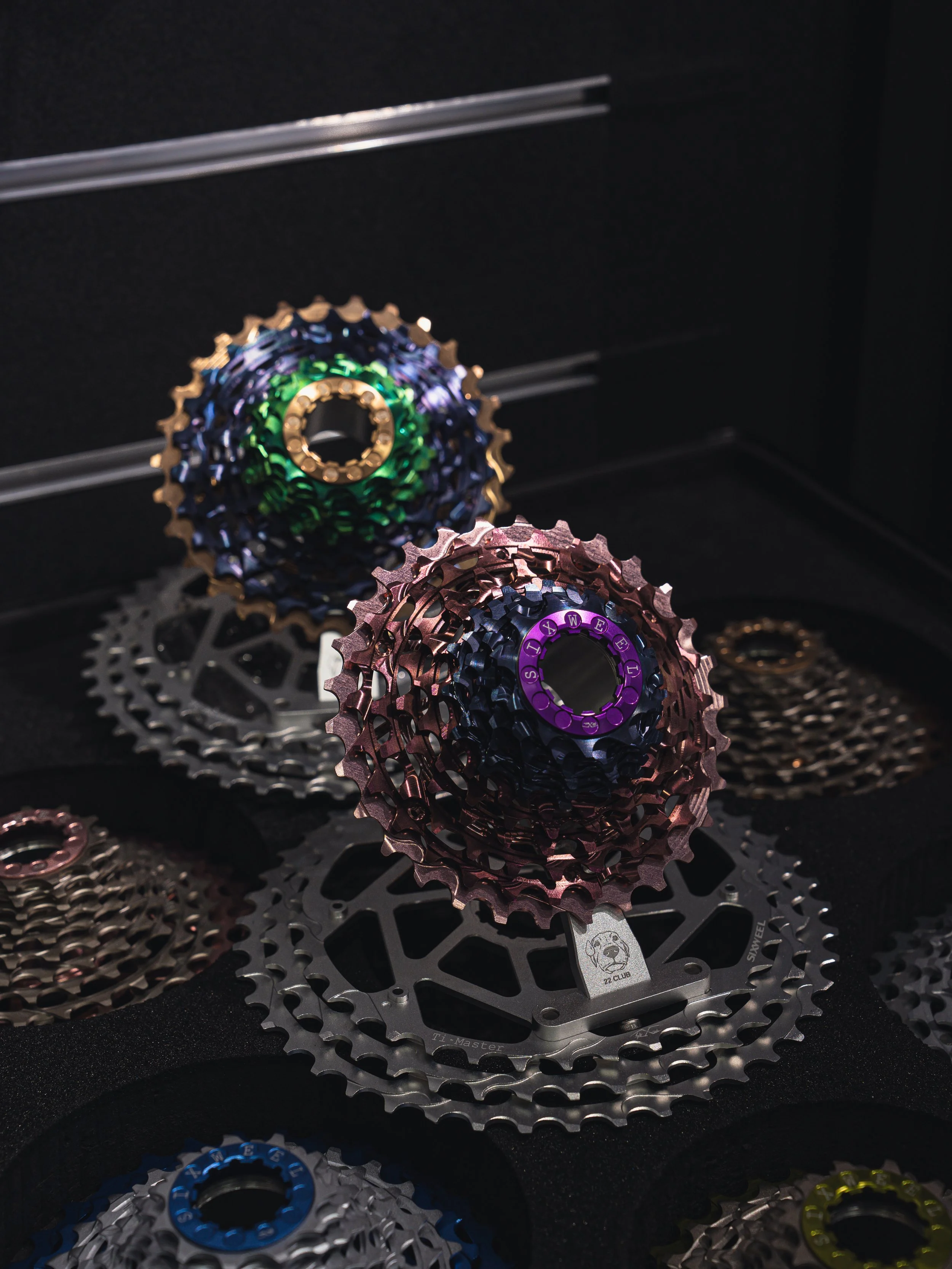

Surface finishing options:
Sandblasting · Nickel plating · PVD vacuum coating
(Color availability varies by version and production batch)
Compatibility
Freehub:
HG 11-speed road freehub body only
Drivetrains:
Shimano 12-speed road (Shimano or YBN chain)
SRAM 12-speed AXS road (SRAM Flat-Top chain)
A dedicated SRAM-specific 11T gear is supplied to ensure optimal compatibility.
Manufacturing Process
Full CNC machining (split + monoblock architecture)
Optimized heat treatment for strength and durability
Precision-controlled tolerances for consistent shifting performance
Sustainability & Upgrade Program
Sixweel offers a structured trade-in and upgrade program for Half-Titanium and Full-Titanium versions, supporting long-term use and reduced material waste.
For detailed terms, please contact Sixweel or authorized dealers.
Notes
Specifications are provided for reference only and may be updated without prior notice.
Color options and availability may vary depending on configuration and stock status.
